DSNET Labview

Network Topology

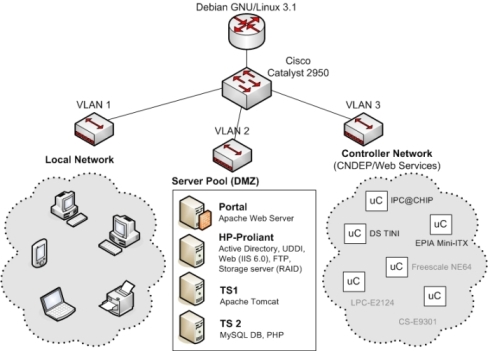

External Topology

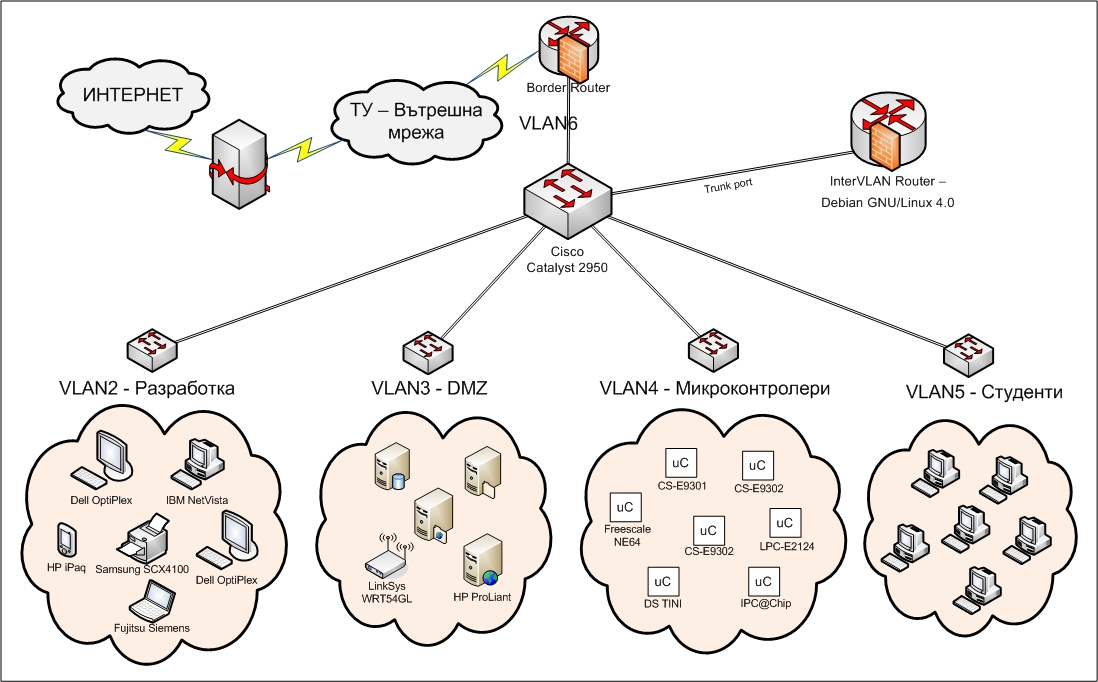

General view of Internal Topology

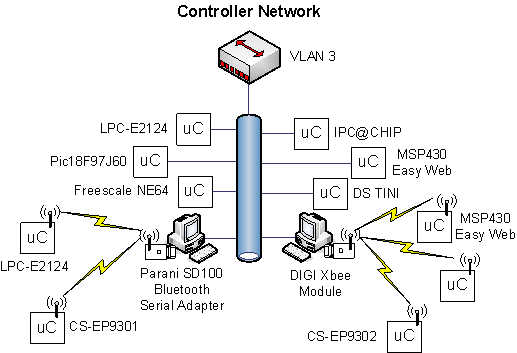

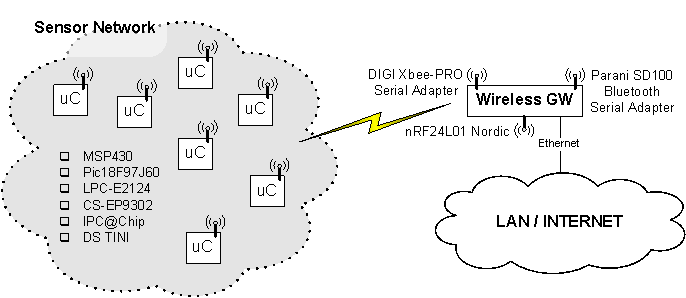

Local Network Topology

Device	Description
IPC@CHIP	About: This controller is designed for use within applications combining control and communication or as an extension of Ethernet, TCP/IP and Web to an existing device. The IPC@CHIP contains RAM, Flash disk, serial interfaces, Ethernet controller, CAN, USB, address and data bus, interrupts, many I/O lines. Processor: SC12 20/40 MHz RAM memory: 512 KB Flash memory: 512 KB RTOS: Yes Ports: Ethernet, 2xSerial, I2C, SPI, 14 I/O, IRQ, External DMA, Timer I/O's, AD-Bus
DS TINI	About: The DSTINIm400 is a fully assembled and tested circuit board that evaluates the DS80C400 network microcontroller. In addition to the DS80C400, the DSTINIm400 includes a real-time clock, 1MB flash, 1MB static RAM, and support for an external Ethernet PHY for connecting to a wide variety of networks. The circuit board is designed as a module to be plugged into a 144-pin SODIMM connector. For evaluation, the DSTINIm400 can be inserted into the DSTINIs400 socket board. The combination of the two boards allows full evaluation of the features of the DS80C400 using an Ethernet network. Processor: DS80C400 75 MHz RAM memory: 1 MB Flash memory: 1 MB RTOS: Yes JDK: 1.2.2 Ports: Ethernet, 3xSerial, CAN 2.0B, 1-Wire Master, 8x64 Digital GPIO
LPC-E2124	Processor: LPC2124 16/32 bit ARM7TDMI-S 60 MHz RAM memory: 16 KB Flash memory: 256 KB RTOS: Yes Ports: Ethernet, USB to RS232, RTC,4x 10 bit ADC 2.44 uS, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O
Freescale NE64	About: Freescales advanced MC9S12NE64 demonstration kit contains everything a designer needs to develop and evaluate the MC9S12NE64 family applications. This comprehensive kit includes a demonstration board that utilizes the MC9S12NE64 on chip EMAC and EPHY. To demonstrate some typical MC9S12NE64 applications in which single chip Ethernet is requirement. Processor: HCS12 25 MHz RAM memory: 8 KB Flash memory: 64 KB RTOS: No Ports: Ethernet, 2xSerial, I2C, SPI, 2xSCI, ADC, 18-key Wake-up IRQs, Timer 16-bit 4-ch.
CS-E9301
EPIA Mini-ITX
AP MicroNet
Bluetooth USB Network adapter	Interface: USB 2.0 (USB 1.1 compatible) Transfer rate Bluetooth: up to 12 Mbit Transfer rate Bluetooth: up to 2 Mbit Support to Bluetooth: Bluetooth 2.0, Bluetooth 1.2, Bluetooth 1.1

Server	Description
Portal	Acts as entry point for Web Applications
HP_proliant	MS IIS and .NET Platform
TS#1	Apache Tomcat + Java 5.0
TS#2	Apache2 with MySQL and Java/PHP/Perl

Laboratory Equipment

Double click pictures to enlarge

Embedded Platforms


Beck‘s IPC@CHIP	@Chip Online Services


DSTINIm400 on DSTINIs400	DSTINI1-512 on E10 Socket


Olimex LPC-E2124	Schematic


Freescale MC9S12NE64	9S12NE64 Demo Board


VIA EPIA Mini-ITX	with open case

Network Equipment


Cisco Catalyst 2950	Cisco Catalyst 2950

Micronet AP

Servers


Server Room	HP ProLiant ML110 Server

Workstations


IBM Netvista	QNX Station


Hyunday	HP

Device	Description
IPC@CHIP	About: This controller is designed for use within applications combining control and communication or as an extension of Ethernet, TCP/IP and Web to an existing device. The IPC@CHIP contains RAM, Flash disk, serial interfaces, Ethernet controller, CAN, USB, address and data bus, interrupts, many I/O lines. Processor: SC12 20/40 MHz RAM memory: 512 KB Flash memory: 512 KB RTOS: Yes Ports: Ethernet, 2xSerial, I2C, SPI, 14 I/O, IRQ, External DMA, Timer I/O's, AD-Bus
DS TINI	About: The DSTINIm400 is a fully assembled and tested circuit board that evaluates the DS80C400 network microcontroller. In addition to the DS80C400, the DSTINIm400 includes a real-time clock, 1MB flash, 1MB static RAM, and support for an external Ethernet PHY for connecting to a wide variety of networks. The circuit board is designed as a module to be plugged into a 144-pin SODIMM connector. For evaluation, the DSTINIm400 can be inserted into the DSTINIs400 socket board. The combination of the two boards allows full evaluation of the features of the DS80C400 using an Ethernet network. Processor: DS80C400 75 MHz RAM memory: 1 MB Flash memory: 1 MB RTOS: Yes JDK: 1.2.2 Ports: Ethernet, 3xSerial, CAN 2.0B, 1-Wire Master, 8x64 Digital GPIO
LPC-E2124	Processor: LPC2124 16/32 bit ARM7TDMI-S 60 MHz RAM memory: 16 KB Flash memory: 256 KB RTOS: Yes Ports: Ethernet, USB to RS232, RTC,4x 10 bit ADC 2.44 uS, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O
Freescale NE64	About: Freescales advanced MC9S12NE64 demonstration kit contains everything a designer needs to develop and evaluate the MC9S12NE64 family applications. This comprehensive kit includes a demonstration board that utilizes the MC9S12NE64 on chip EMAC and EPHY. To demonstrate some typical MC9S12NE64 applications in which single chip Ethernet is requirement. Processor: HCS12 25 MHz RAM memory: 8 KB Flash memory: 64 KB RTOS: No Ports: Ethernet, 2xSerial, I2C, SPI, 2xSCI, ADC, 18-key Wake-up IRQs, Timer 16-bit 4-ch.
EPIA Mini-ITX
CS-E9301	1
CS-E9302	1
PIC-MT	1
PIC-GSM	1
PIC-MINI-WEB	1
PIC-LCD3310	1
PIC-ICD2	1
PIC-ICSP	2
MSP430-SOLAR	1
MSP430-EASYWEB-3	1
MSP430-JTAG-TINY	1
MOD-NRF24LR	2
MOD-GPS	1
AP MicroNet
Bluetooth USB Network adapter	Interface: USB 2.0 (USB 1.1 compatible) Transfer rate Bluetooth: up to 12 Mbit Transfer rate Bluetooth: up to 2 Mbit Support to Bluetooth: Bluetooth 2.0, Bluetooth 1.2, Bluetooth 1.1
